Trailer GPS Tracker Without External Power: Battery Math and Placement

Does a trailer tracker require an external power source?

A trailer tracker needs an external power source only if it is a hardwired unit. A self-powered unit with an internal rechargeable battery does not need trailer wiring at all, which is the commonest point of confusion here.

"External power" means anything the tracker draws from outside its own battery: a trailer auxiliary battery, a lighting circuit, a breakaway system, an accessory feed from the tow vehicle, or an OBD-II port. A hardwired tracker needs one of those and will not report without it. A battery powered trailer tracker needs none of them.

Vendors describe power requirements differently, and a trailer-marketed device may still be a wired model expecting a 12-volt feed, so confirm a specific vendor's requirement on that vendor's own spec sheet. The rule holds: self-powered does not need the trailer, hardwired does.

Two power models, two different maintenance jobs

A hardwired trailer tracker moves the work to installation day: it draws from a verified, fused circuit and nobody has to remember a charger, but the trailer must genuinely have that circuit, and a trailer parked disconnected may have no power reaching the device.

A self-powered trailer tracker moves the work to a recurring routine. It installs in minutes without wiring, so someone must charge it on a schedule matching how often the trailer moves.

If the trailer has no verified circuit, do not improvise one. Splicing into lighting, brake, or breakaway wiring to avoid charging a battery is not a shortcut; those circuits exist for road safety. If your trailer does have a documented auxiliary battery or accessory circuit, the VITALGLOW wired GPS tracker is the format that uses it.

The battery math: runtime is a budget, not a specification

Run time is a budget: the charge the unit stores, divided by what each day of reporting spends. Four levers set that daily spend, and you can estimate all four before you buy.

Reporting interval is the biggest lever, because every report is a GPS fix plus a cellular upload. Movement-triggered reporting works in your favor: an incremental mode spends almost nothing while the trailer sits and starts working once it moves. Alert volume is the third, since geofence and movement alerts each make the device evaluate a condition. Cellular signal strength is the fourth: in weak coverage a tracker retries uploads, spending charge on reports that never arrived on the first attempt.

Here is that arithmetic on one clearly labeled example. Assume a unit reporting every 10 minutes while moving and once per day while parked, with the trailer moving four hours a day: 4 x 6 = 24 moving reports, plus 1 parked report, so 25 events per day and 25 x 7 = 175 events a week.

Change one assumption and keep the rest. If the unit reports only on movement, every two minutes while the trailer rolls: 4 x 30 = 120 moving reports, zero parked, so 840 a week. Both examples spend almost nothing on a trailer that sits for three days; the movement-only version buys nearly five times as many events while it rolls. Frequency during movement is what you pay for.

To turn events into days you need two figures only the product page can supply: the usable charge the unit stores, and what one reporting event costs on that hardware. Multiply events per day by that per-event cost, then divide usable charge by the result. Those figures are model-specific, so a day count quoted for other hardware does not transfer to your trailer.

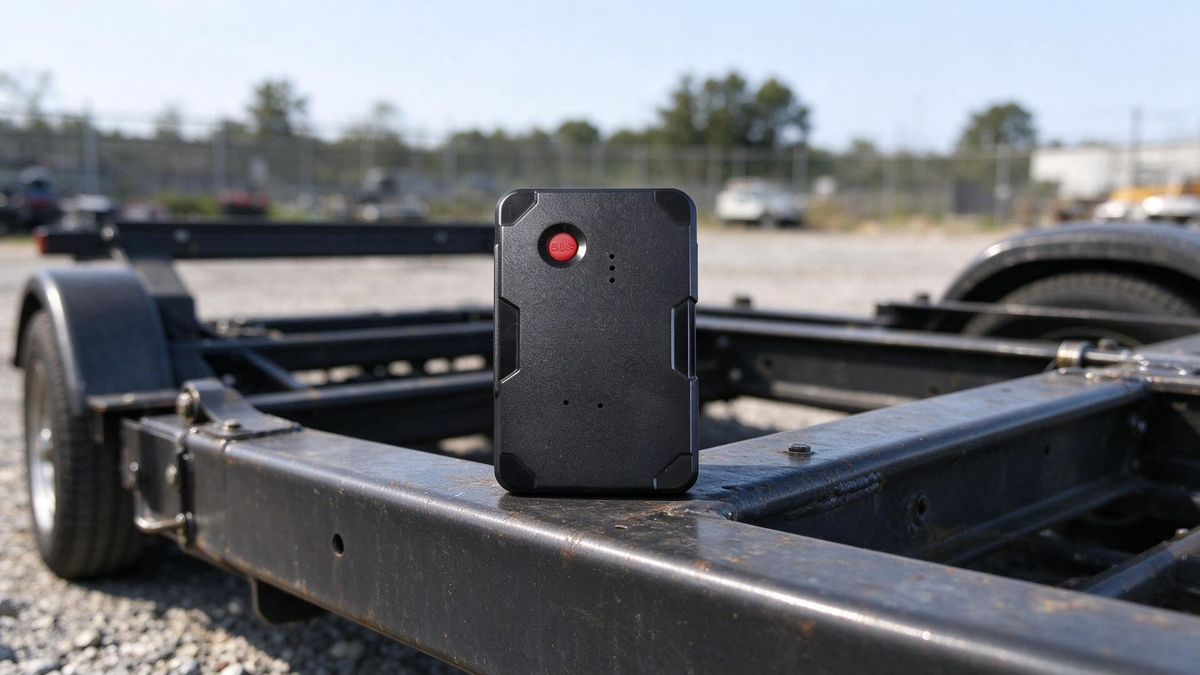

Placement: where a magnetic unit can and cannot attach

A magnetic trailer tracker needs a flat ferrous surface with clear sky above it. A flat steel frame rail, the tongue, or a steel crossmember satisfies that. Aluminum, galvanized cladding, and plastic do not, because the magnet has nothing to hold.

An enclosed cargo trailer is the hard case. Its skin is sheet metal or aluminum, and the inside of a metal box behaves like a shield. The dependable positions are the steel frame rail underneath, the tongue or A-frame, and the exterior face of a steel member. A gooseneck is the most forgiving: the long steel neck sits high and forward of the axles, giving good sky view and safe distance from cargo.

Aluminum and galvanized trailers are a search problem, not a dead end, because every one still has steel at the frame rails, coupler, tongue, and under-deck crossmembers. Galvanizing may hold a magnet, but the zinc layer weakens grip against bare steel, so the first towed mile is the real retention test.

Keeping a unit discreet without wrecking signal

Discretion and reception pull against each other, and the honest answer is that there is a limit. A magnetic unit can sit out of casual sight without blocking the sky, but no placement hides hardware from a determined person while leaving an open sky view and a clean cellular path.

The workable compromise is a position that does not draw the eye during a normal walk past the trailer but still has metal-free space above it: the top face of a frame rail behind a fender, the inner face of a tongue behind the coupler, the forward underside of a gooseneck neck.

Treat the underside of the deck as a fallback, because the deck and frame sit between the device and the sky, and a flat metal trailer roof has the same problem with worse service access. Skip any placement that removes a safety component, blocks a drain path, or leaves a cable where it can rub or snag.

Seasonal storage: charge, switch, verify

Seasonal storage is where self-powered trailer tracking usually fails, and it fails predictably: the device reports nothing at the start of the season because it sat at a low charge for months, or because nobody verified it before hitching up.

Three steps prevent it. Charge the unit fully before the trailer is parked for the season, not after. Switch reporting to the most conservative mode available, ideally movement-only, so charge is not spent reporting an empty yard. Then, before the first tow of the new season, charge again, mount the unit, and confirm a fresh position instead of trusting the last point on the map.

Put that check on the same inspection list as the tires and lights, with a named owner. A stale timestamp is not automatically a fault, because a parked device may have had nothing to send; what matters is whether it wakes, fixes, and uploads after movement.

Practical action sequence

1. Confirm the trailer has no verified, fused accessory circuit. If it has none, plan on a self-powered unit.
2. Read the product page and record the published runtime terms with the conditions attached to them.
3. Write down the reporting behavior you need: interval while moving, whether parked reporting matters, and which alerts you would act on.
4. Run the event arithmetic for that configuration and compare it against those published conditions.
5. Walk the trailer with a magnet and identify every flat ferrous surface with clear sky above it.
6. Mount the unit, then re-check retention after the first towed mile.
7. Capture a baseline report in the normal storage position, take one short known tow, and compare the recorded points.
8. Test one movement or geofence alert and confirm you receive it when it matters.
9. Record the charging owner, the charge interval, and the pre-season verification step.

Decision being resolved: how a trailer with no electrical system of its own gets tracked, which power model to buy, how long one charge should last at the reporting behavior you chose, and where the hardware physically goes.

Keep the scope distinct: the trailer and equipment tracker guide owns the wider buying decision across trailers and towed equipment, and the farm equipment guide owns seasonal field machinery. This page owns the no-power trailer problem: the power model, the battery arithmetic, and the placement.
