How Plant Machinery Trackers Work, Step by Step
October 25, 2026
Quick answer: a plant machinery tracker works in four stages. It fixes its own position from satellites, sends that position over a mobile network, a platform stores the record, and an app or web page shows you where the machine is. Nothing in that chain depends on the machine being switched on. The unit carries its own battery and its own SIM, which is the reason it can be bolted to a digger that sits idle for weeks and still know where that digger is.
Most explanations of machinery tracking describe the dashboard. This one describes the machine-to-screen chain, because that is what tells you when the tracker will let you down. Each stage has its own failure mode, and they are not interchangeable: a lost satellite fix and a dead battery both look like "it stopped working" on the app, and they have nothing in common underneath.

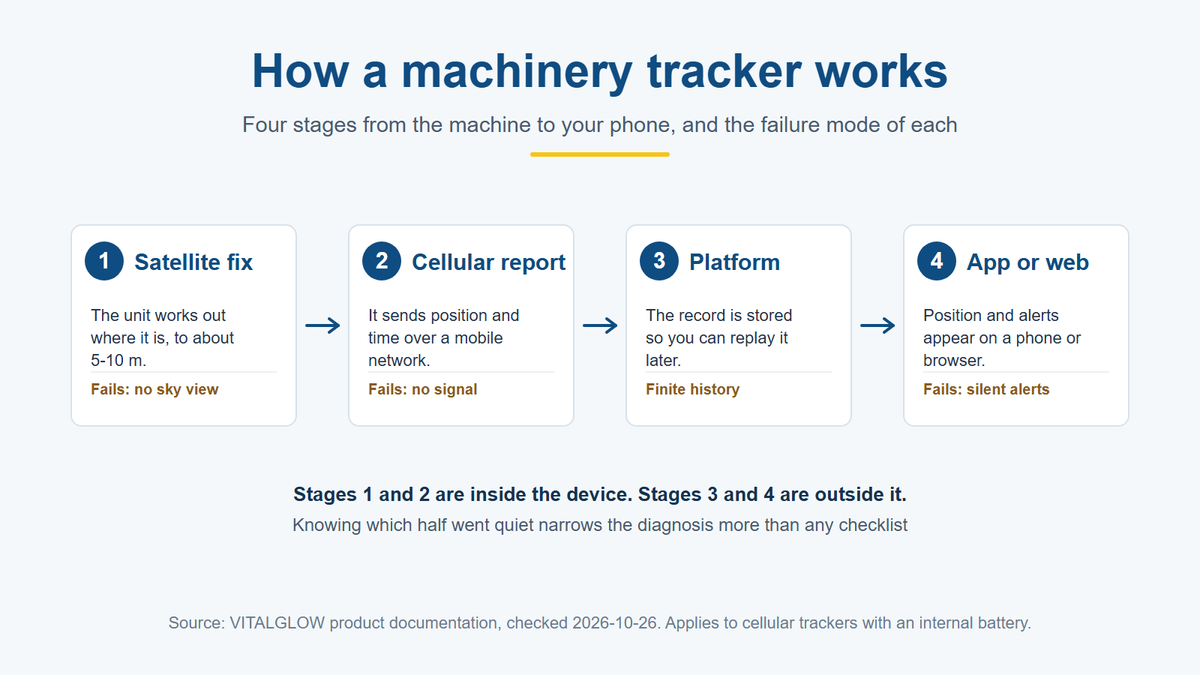

The four stages, and what each one actually does
| Stage | What happens | What it needs | How it fails |
|---|---|---|---|
| 1. Position fix | The unit listens to satellites and calculates where it is, typically to within 5 to 10 metres | A clear view of the sky | Indoors, in a deep cutting, or under dense cover: no fix, so no position to report |
| 2. Reporting | The unit sends position, time and speed over a mobile network, every 30 seconds or at whatever interval the device uses | Mobile signal at the machine | No coverage: the unit keeps recording and sends the backlog when signal returns |
| 3. Storage | The platform stores the record so you can replay it later; history is held, not just the latest point | An account with the platform | Nothing fails here, but the history window is finite and worth knowing |
| 4. Display and alerts | An app or web page shows the position and raises alerts for movement, geofence entry or exit, and tampering | A phone or browser, and notification permission | Alerts that arrive silently; a phone on silent is the most common reason a real alert is missed |
The first two stages are inside the device. The last two are outside it. When something looks broken, deciding which half the fault is in narrows the diagnosis more than any checklist.
Why machinery is different from a car
A car has a charging system, so a device can borrow power from it. Plant machinery usually does not: a digger, a generator or a compressor may sit for weeks with its battery disconnected, and there is no diagnostic port to plug into. That single fact pushes machinery tracking towards a battery-powered unit with its own SIM, which is why the tracking does not depend on the machine at all.
The second difference is movement. Machinery rarely drives itself down a road; it is loaded, towed or transported. So a geofence that triggers on leaving the yard is more useful than a live speed reading, because the event you care about is the machine departing, not how fast it went.
What the record looks like once it is working
You get a trail of timestamped positions. From that come the things owners actually use: where the machine is now, where it went last week, how long it stood in one place, and an alert when it crosses a boundary you drew. The unit itself only ever knows its own position and sends it; everything else is the platform doing arithmetic over that record.
The one thing worth asking before buying. How often does it report, and is the SIM and data included in the price? Reporting interval decides what the record can support - a 30-second trail shows a machine being loaded onto a trailer, while a 15-minute trail shows only that it was in the yard this morning. A device that includes its SIM and data has no recurring charge; one that does not will bill you monthly, and the listing usually says so quietly.
Where it usually goes wrong, in order of frequency
Coverage, not satellites. The most common cause of a machine going quiet is that the machine is in a place with no mobile signal - a basement, a deep excavation, a rural site. The satellite stage still worked; the reporting stage had nowhere to send the result.
A flat battery after long storage. A unit left on a machine for months without moving draws slowly down. It sleeps between reports to slow that down, but a machine stored through a winter may need the unit charged before the season starts.
A mount that did not survive. Machinery vibrates. A magnetic unit needs a steel surface that stays dry and clean; on aluminium panels or corroded steel there is nothing for it to hold, and a unit that falls into the chassis stops reporting and is hard to find again.
What the physical unit is
Our magnetic unit is the shape this problem produces: a battery-powered, self-contained device measuring 75 x 46 x 22.5 mm and weighing 100 g, with a 3000 mAh battery and reporting every 30 seconds, working in 170+ countries because the SIM and the data travel with it. Those figures are what make it usable on a machine that has no power of its own. See the full magnetic tracker specifications.
The mechanism is simple; the failure modes are where the money goes. Know which of the four stages went quiet before you start replacing hardware.
Questions about how machinery tracking works
Does a plant machinery tracker need the machine to be running?
No. The unit carries its own battery and its own SIM, so it reports whether the machine is running, parked or stored. It does not draw power from the machine and does not need an ignition signal to know where it is.
How accurate is the position it reports?
Typically within 5 to 10 metres in open conditions. Accuracy degrades when the unit cannot see enough sky, for example inside a building or under dense cover, which is also when the position may look stale or jump.
What happens when there is no mobile signal on site?
The unit keeps recording positions and cannot send them. When the machine returns to coverage the record uploads, so the trail fills in afterwards even though the live view had a gap.
How often does the tracker report?
Our magnetic unit reports every 30 seconds. Other devices vary widely, and the interval decides what the record can support: a 30-second trail can show a machine being loaded, while a 15-minute trail only shows where it was in the morning.
