Hardwired GPS Tracker Installation: Step-by-Step for Vehicles
September 30, 2026
Decision being resolved: how a hardwired GPS tracker installation is done properly - circuit choice, tap, routing, mounting, and the checks that follow - so a vehicle does not come back with a flat battery, a chafed loom, or a disturbed circuit.
Keep the scope distinct: the OBD plug-in installation guide owns what to check before a device goes into a port, and the OBD vs magnetic vs wired comparison owns the format decision. This page owns the hardwired sequence and the checks that follow it.

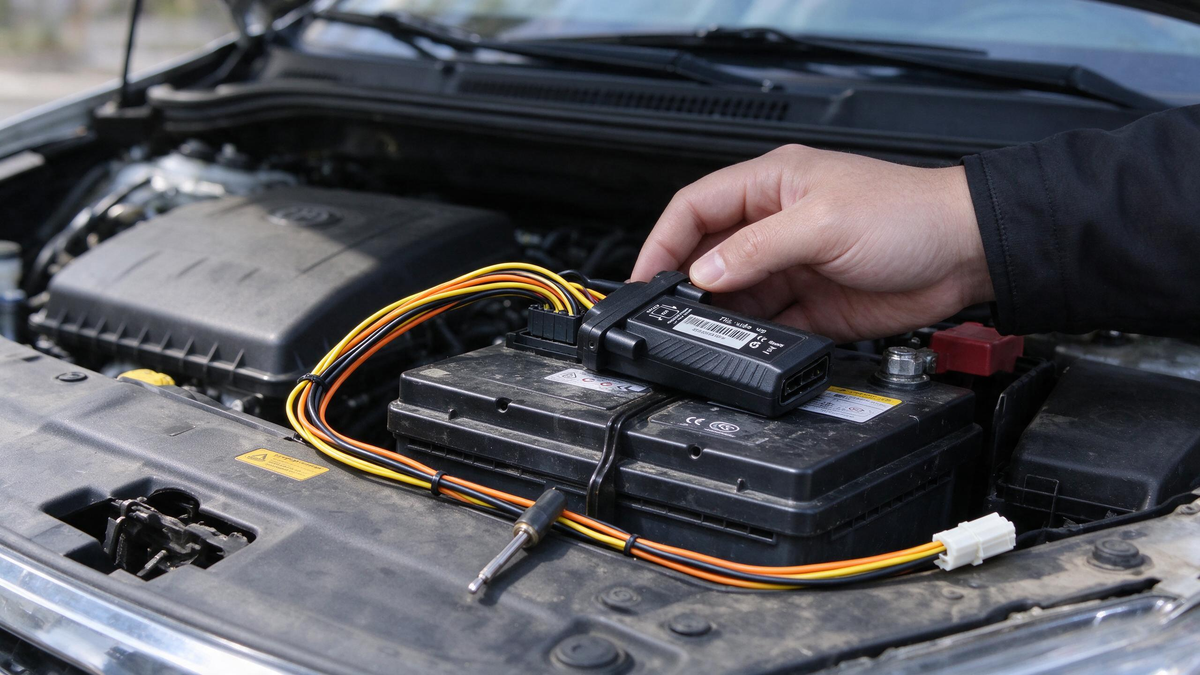

Step-by-step: wiring a hardwired tracker
A VITALGLOW Wired GPS Tracker draws from the vehicle instead of an internal battery pack, which makes the install an electrical job rather than a plug-in. The order below keeps the vehicle safe during the work.
- Disconnect and make safe the battery. Follow the vehicle's service information for the correct sequence, keep tools and terminals off grounded metal, and let the modules power down before touching a circuit.
- Choose the circuit. Constant power stays live after shutdown, which is what lets a tracker report a parked vehicle overnight; ignition-switched power follows the key, which fits a vehicle you only need to see while it is in use. Never take over a circuit that feeds airbags, brakes, lighting, or the immobilizer.
- Tap it with a fuse, not a bare splice. A fused tap keeps the original circuit protected and gives the new branch its own protection. Use the fuse value and connector that the tracker's instructions specify, never a bare wire pushed into a live fuse slot.
- Route and secure the loom. Keep the cable clear of exhaust and manifold heat, pedals, the steering column, seat rails, fans, and sharp sheet metal. Wrap and clip the run, leave slack at flex points, grommet any panel pass-through, and stay away from airbag wiring and modules.
- Mount the unit where it still sees the sky. Satellite reception does not survive a full metal enclosure, so choose a dry, solid, serviceable position that is not boxed in by body panels or pressed against a heater duct.
- Reconnect and verify. Reconnect the battery as the vehicle's service information specifies, start the vehicle, confirm that no new warning light appears, and check that the unit powers up and reports a fresh timestamp.
Checks after the install
A hardwired tracker installation is finished when the vehicle behaves as it did before the work and the VITALGLOW unit reports on its own. Run these checks in order, including one overnight park, and send the vehicle back to the installer if a row fails.
| Check | How to verify | What a failure means |
|---|---|---|
| Vehicle starts normally | Start it cold the next morning and compare with how it started before. | A slow or failed crank points at the battery reconnection or a tap on the wrong circuit. |
| No new warning lights | Watch the dash at start-up, then again after a short drive. | A light that was not there before means a connector or circuit was disturbed. |
| Fresh timestamp | Open the account, select the vehicle, and confirm the timestamp advanced after the install. | A timestamp that does not move means power, ground, or activation is unresolved. |
| Parked state still reports | Park overnight as usual and check the account in the morning. | No overnight record means the unit is losing power or sleeping when it should report. |
| No battery drain over several days | Drive normally for several days and watch for a slow crank or a jump start. | Repeat drain points to a constant-power tap on a circuit not meant to carry it. |
| Loom and mount stay put | Re-inspect after the first week: clips, wrap, grommet, and the unit. | A loose loom or chafed wire can damage the vehicle's own wiring. |
When to hand the job to a professional installer
A hardwired GPS tracker installation belongs with a qualified installer as soon as the work reaches factory wiring. Choosing the circuit, making the tap, and routing through a panel or bulkhead all depend on the vehicle's own service information, and a professional can test the actual circuit, confirm what it feeds, and document where the tracker draws power.
Treat the installer's note as part of the job: the circuit and tap point, the device reference, the date, and anything still open. A bare splice where a fuse tap belongs, a fuse pulled aside to hold a wire, or a tap on a safety circuit are the things to refuse, because each one weakens protection the vehicle already had. If the vehicle is leased or still under warranty, confirm the work is acceptable before anything is tapped or drilled.
For the deeper circuit debate, use the constant power versus ACC wire guide; for pre-wiring checks on the vehicle itself, use the hardwired installation guide.
What to record on a fleet install
A fleet that installs trackers across several vehicles needs one short record per vehicle that answers which device, on which vehicle, wired where, verified how, and who owns the next change. It is not a wiring manual, and it should not hold credentials.
| Record field | What goes in it | Why it matters |
|---|---|---|
| Vehicle ID | A stable internal label, such as Van 04 | Survives driver changes and keeps the device tied to the vehicle. |
| Device reference | Format plus a non-secret device identifier | Prevents swaps and support confusion without storing credentials. |
| Install date and installer | The date, and the qualified installer who did the work | Gives a return path for inspection and a service baseline. |
| Tapped circuit | The circuit and tap point the installer used | The next technician does not have to guess where power comes from. |
| Account label and acceptance result | The exact vehicle label plus the first verified timestamp | Shows what was confirmed before the vehicle returned to service. |
| Open items and owner | Anything unresolved, with a name and a date | Keeps a conditional install from quietly becoming done. |
Score each install as pass, conditional, or blocked. Pass when starting, warning lights, the timestamp, and overnight reporting all check out; conditional when a label or a document is still open, with a person and a date attached; blocked when the vehicle's electrical behavior changed or the tap point cannot be identified, in which case the fleet should not lean on the tracker for that vehicle yet. Add the reason for every change instead of overwriting the previous entry, and keep photos minimal, because a close-up of a harness shows placement and is less useful than a written tap-point note.
Re-check after service, repair, or a battery change
Any later work on the electrical system can disturb a hardwired tracker: a battery replacement breaks the power path, a repair can move a loom, and a shop may remove a tap it does not recognize. Repeat the short version of the checks after service - start the vehicle, watch for new warning lights, confirm a fresh timestamp, and look at the loom and mount - then add the new date and reason rather than overwriting the old entry. When the vehicle is sold or the device moves, remove it deliberately and update the account label so an old assignment is not left behind; the device transfer guide covers that handoff.
Which VITALGLOW tracker fits a hardwired install
The VITALGLOW Wired GPS Tracker is the format built for a permanent install: $119.99, hardwired to vehicle power, waterproof, with the 4G SIM and data included and no monthly fee or subscription, reporting real-time location, trip history, and geofence context. It fits a vehicle assigned to one driver or one route, and a buyer who does not want a charging routine or a device on the dash.
If the vehicle has a compatible OBD port and you would rather not touch the GPS tracker wiring, the plug-in installation guide is the right page. If you are still choosing between formats, settle that first in the OBD, magnetic, and wired comparison, then come back here with the hardware in hand. Current listings are in the VITALGLOW collection, and the business GPS tracking page is the entry point for a small fleet.
Continue the decision
- VITALGLOW Wired GPS Tracker ($119.99, no monthly fee)
- Hardwired installation: what to check before you wire
- Constant power vs ACC wire: choosing the circuit
- Where to mount a tracker so it still sees the sky
- OBD plug-in installation: what to check first
- OBD vs magnetic vs wired: which format to buy
- GPS tracking for business vehicles
- See all VITALGLOW tracker formats
Frequently asked questions
How is a hardwired GPS tracker installed?
In six steps: disconnect and make safe the battery, choose a constant-power or ignition-switched circuit, tap it with a fuse rather than a bare splice, route and secure the loom away from heat and moving parts, mount the unit where it still sees the sky, then reconnect and verify that the vehicle starts normally and the tracker reports a fresh timestamp.
Does a hardwired GPS tracker need a monthly fee?
No. The VITALGLOW Wired GPS Tracker is $119.99 and ships with the 4G SIM and data included, with no monthly fee and no subscription, so there is nothing to activate or renew. What it does need is a proper electrical connection to the vehicle, which is where the real cost of a hardwired install sits.
Can I install a hardwired GPS tracker myself?
Hand the tap to a qualified installer. Choosing the circuit, making a fused connection, and routing through a panel all depend on the vehicle's own service information, and the vehicle's fusing and safety systems have to keep working afterwards. An installer can also test the actual circuit and document where the tracker draws power.
How do I check that a hardwired tracker installation worked?
Start the vehicle cold and compare it with how it started before the work, check for new warning lights, confirm in the account that the timestamp advanced, leave the vehicle parked overnight and confirm it still reported, then drive normally for several days and watch for a slow crank. A failure on any of those points goes back to the installer.
Next step for a hardwired install: review the VITALGLOW Wired GPS Tracker - $119.99, hardwired to vehicle power and waterproof, with the 4G SIM and data included and no monthly fee.
Purchase boundary: the tracker is the device; the install is electrical work on your vehicle. Plan a professional tracker install, and do not compromise the vehicle's own fusing or safety systems to fit a tracker.
